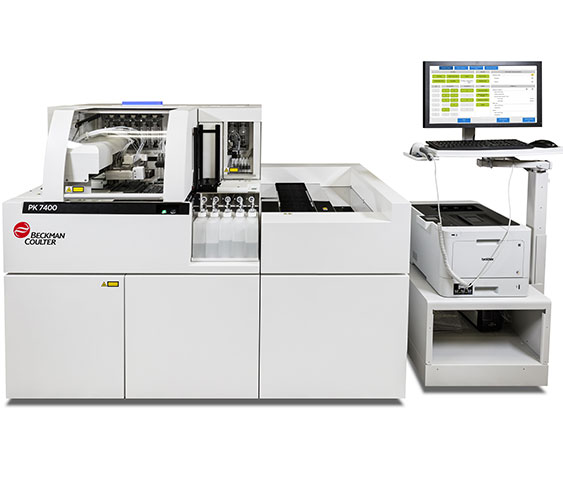

The PK7400 Automated Microplate System delivers the industry’s highest throughput and improves workflow efficiency through fully automated, batch-test functionality. The next evolution in PK innovation, the PK7400 donor testing analyzer, enables you to optimize testing using proven agglutination technology and a comprehensive blood typing menu.
Endless Benefits
The PK7400 automated blood banking analyzer delivers unmatched throughput.
Simple to Use Donor Testing Analysis
The PK7400 Donor Testing Analyzer Delivers Peace of Mind
General Characteristics | |
Analytical method | Agglutination method on terraced microplates |
Channels | 12 |
Throughput | 300 samples/hour with 5 diluted sample cups |
Sample capacity | 12 racks or 120 samples; continuous sample-rack loading allowed |
Sample tube size | In primary or secondary tubes: diameter: 12‒15 mm; height: 75‒100 mm |
Sample | Plasma, serum, red blood cells |
Reagent tray | Up to 16 reagents can be loaded; 12 positions for primary reagents (R1); 4 positions for secondary reagents (R2) |
Reaction vessel | Terraced microplates |
Reaction time | 60 minutes |
Assays | ABO blood grouping, Rh typing, including weak D testing, red blood cell antigen screening and syphilis qualitative screeningⱡ |
Sample barcode | NW-7, CODE 39, CODE 128, ISBT-CODE 128, 2 of 5 Interleaved and EAN-13 |
Analyzer dimensions | 1,760 mm (W) x 920 mm (D) x 1,380 mm (H) / 69 in (W) x 36 in (D) x 54 in (H) |
Console dimensions | Console dimensions 800 mm (W) x 720 mm (D) x 1,450 mm (H) / 32 in (W) x 28 in (D) x 57 in (H) |
Weight | 750 kg / 1,653 lbs |
Electrical Requirements | |
Electrical consumption | 3.0 kVA maximum |
Current | 15‒30 amp (with UPS) |
Circuit | Dedicated and noise-free |
Voltage | 200/208/220/230/240 VAC (±10%) single phase |
Frequency | 50/60 Hz (±1 Hz) |
Ground requirement | <100 ohms |
Location | Power cable length 10 m (30 ft) |
Water Requirements | |
Type | Deionized |
Supply | Continuous flow |
Resistivity | >0.5 mega ohms |
Mechanical filtration | <0.5 µm (glycerol-free) filter at discharge of deionizer |
Consumption | 50 L/hour max, instantaneous demand 3.5 L/minute |
Pressure | 0.49 x 105 Pa to 3.92 x 105 Pa (7.1‒58.8 PSI) |
Location | Shutoff valve within 10 m (30 ft) |
Tubing diameter | 12 mm (ID) x 18 mm (OD) |
Connection | 0.5 in barbed-hose fitting |
Drain Requirements | |
Gravity | Hazardous waste floor drain: maximum height 1.5 m (5 ft); max distance from analyzer: 10 m (30 ft) |
Tubing requirements | 15 mm (ID) x 22 mm (OD) |
Environmental Requirements | |
Average heat output | 7,200 KJ/H (6,824 BTU) max |
Ambient temperature | 18–28°C (fluctuations during measurement shall be within ± 2°C) |
Ambient humidity | 20%–80% relative humidity |
Noise output | Max 65 dB or less |
